Name: Tower / Port Protection Ese Lightning Rod 304 Stainless Steel Enclosure Material
Brand: TS Lightning Protection Co.,Limited
SKU: SMT-ESE40/LRT
Availability: InStock

Home Products Ese Lightning Rod

Tower / Port Protection Ese Lightning Rod 304 Stainless Steel Enclosure Material

Product Details:

Place of Origin:	Guangdong, P.R.C.
Brand Name:	TSTLP
Certification:	CE / Patent Certificate
Model Number:	SMT-ESE40/LRT

Payment & Shipping Terms:

Minimum Order Quantity:	4pc (1st order< 4pc is OK)
Price:	Negotiable if good quantity
Packaging Details:	23x23x45cm colorful box/pc, and 4 pcs in 49x50x50cm carton
Delivery Time:	Around 6 working days upon receipt of payment
Payment Terms:	Full TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash in advance
Supply Ability:	1,000 sets/month

Contact Now

Detailed Product Description

Function:	Discharge Lightning Ahead	ESE Time(μs):	40
Enclosure Material:	304 Stainless Steel	Color:	SS
Height (mm):	408	Width:	270mm
Highlight:	lightning arrester rod , advanced lightning arrester

Buy lightning rod system for homes / shipping mall / tower / port protection

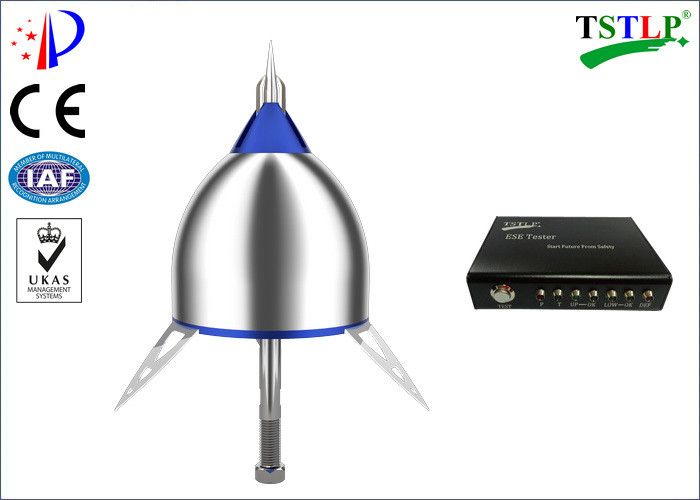

TSTLP ESE lightning rod tester - one important testing tool is for checking that the upgraded TSTLP ESE lightning rods are working properly and that none of the vital components is damaged

Technical Data of TSTLP SMT-ESE40 ese lightning rod for direct lightning protection system

Tower / Port Protection Ese Lightning Rod 304 Stainless Steel Enclosure Material 0

SMT-ESE40 lightning rod - Radius Protection Table

Protection Level	Level 1	Level 2	Level 3	Level 4
Brand	TSTLP
Model	SMT-ESE40
Delta T	40μs
h(m)	RADIUS PROTECTION (m)
2	23	26	30	34
3	35	39	45	50
4	46	52	60	67
5	58	65	75	84
6	58	66	76	84
8	59	66	77	86
10	59	67	77	87
12	59	68	78	88
20	60	69	81	92
30	*	70	84	95
45	*	*	85	99
60	*	*	*	100

Protection of high rise buildings (height greater than 60 m)

Additional protection against direct lightning strike for the highest 20% of the structure height for buildings greater than 60 m or any point above 120 m, using e.s.e. lightning rod or any other means must be implemented at each façade wall according to a valid standard. Furthermore a minimum of 4 Down conductors, interconnected by a ring conductor when applicable, shall be used, distributed along the perimeter and if possible at each angle of the building.

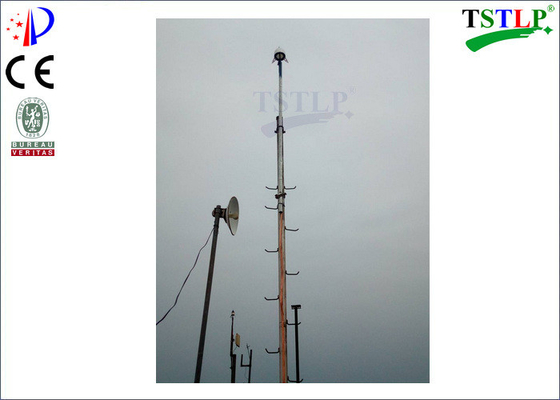

TSTLP ESE lightning rod system for homes / shipping mall / tower / port... protection Installation

Download PDF 2020 TSTLP ESE Lightning Rod Catalog @ https://drive.google.com/file/d/1kEW-pWdJdlArVgfrHutq62k9HsVNcHq-/view?usp=sharing

PDF Datasheet Download - TSTLP SMT-ESE40.pdf

PDF Catalog Download - TSTLP-ESE Tester (Black).pd...

Tag: buy lightning rod, lightning rod system, lightning rod system for homes

Tag:

Contact Person: Franklin

Tel: +86-13926098193

Fax: 86-20-28819702-27806
