Stainless Steel Ese Lightning Arrester High Efficiency Protect For High Buildings

Product Details:

Place of Origin:	Guangdong, P.R.C.
Brand Name:	TSTLP
Certification:	Patent Right / CE
Model Number:	SMT-ESE50/SLC3D

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable if good quantity
Packaging Details:	230x230x450mm colorful box/pc, and 4 pcs in 490x500x500mm carton
Delivery Time:	Around 7 working days upon receipt of payment
Payment Terms:	100% TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash ahead
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Type Name:	Ese Type Lightning Arrester	Efficiency ΔT:	50μs
Product Color:	Mirror-shine	10/350μs Withstanding:	≥ 200kA (10/350)
Reference Standards:	NF C 17-102:2011 Annexe C	Net Weight(kg):	3.8
High Light:	lightning arrester for building , active lightning arrester

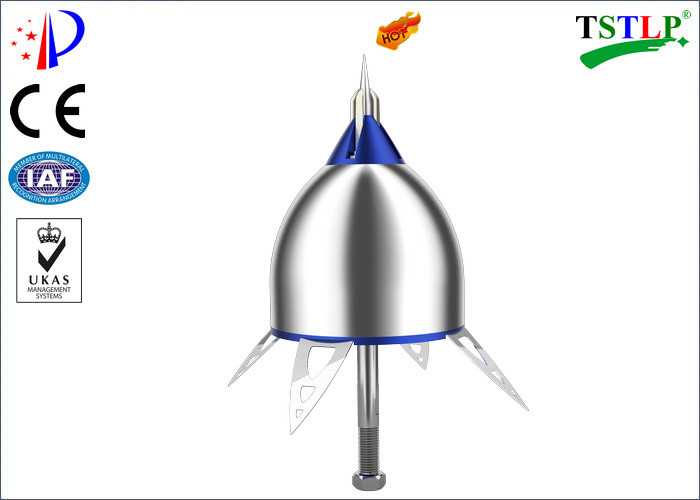

Stainless steel ese type lightning arrester ( referred as ese thunder arrester ) at rival price for overseas distributor

Main Character:

Patent (Nr 2013300191397) available for legal favorable market sales
Referring to NF C 17-102, UNE 21.186, IEC... mutilple international standards.
Self-active ese type lightning arrester with competitive price Reliable, Robust & durable even after horrible lightning strike
Standardized Manufacturing & Operating Process ( new ISO 9001:2015 Certified )
Technical Data:

Brand/Logo	TSTLP
ESE type lightning arrester	SMT-ESE50
Patent Nr	2013300191397
Delta T	50μs
Lightning current withstanding test Iimp	100,000A (normative test at 10/350μs waveform as standard requires)
Lightning current withstanding Iimp (10/350μs)	≥ 200,000A
Capacity against wind speed	≥144 km/h
Dimension(Length)	408mm
Approx net weight	3.8kg
Product Housing	Qualifed 304 SS
Product standards	French NF C 17-102_2011 Annexe C
	Spanish UNE 21.186:2011 Paragraph C
	IEC 60060-1:2010 Part 1
	Europe EN 60060-1:2010
	China National GB/T T16927.1-2011 Part 1;
H.S. Code	8535400000

Stainless Steel Ese Lightning Arrester High Efficiency Protect For High Buildings 0

Radius Protection Table - SMT-ESE50 ese lightning arrester

Stainless Steel Ese Lightning Arrester High Efficiency Protect For High Buildings 1

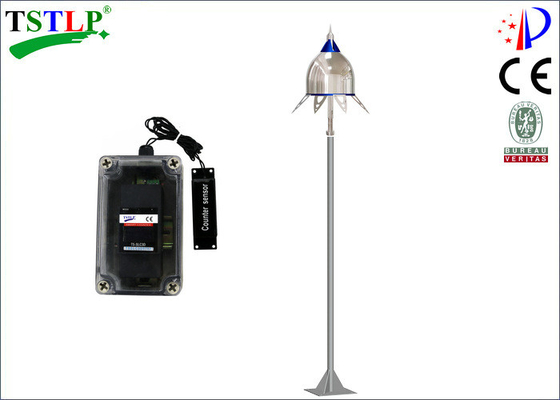

TSTLP ese type lightning arrester for buildings

Installation procedure for TSTLP ESE Type Lightning Arrester is governed by latest French standard NF C 17-102 and follows a series of simple rules catering for all types of structures

Stainless Steel Ese Lightning Arrester High Efficiency Protect For High Buildings 2

Stainless Steel Ese Lightning Arrester High Efficiency Protect For High Buildings 3

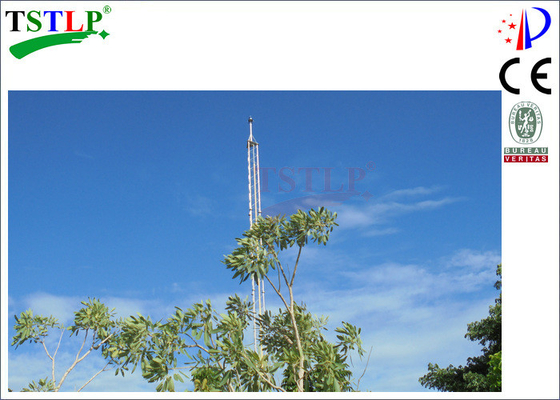

Overseas Installation Photo from our client

Stainless Steel Ese Lightning Arrester High Efficiency Protect For High Buildings 4

PDF Datasheet Download - TSTLP SMT-ESE50.pdf
