Single Port Ethernet Surge Protection Devices 5v - 1000MBit Vs Cat6 Surge Arrester

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	TSTLP
Certification:	CE Compliance
Model Number:	TS-RJ45/5/8(1000)

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable if good quantity
Packaging Details:	By standard export box/carton
Delivery Time:	Around 7 working days upon receipt of payment
Payment Terms:	100% TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash ahead
Supply Ability:	2000 sets/month

Contact Now

Detailed Product Description

Normal Voltage:

In(line-PG):

2.5kA

Moutning On:

35mm Din Rail

Data Transmission Rates:

1000 Mbits/s

High Light:

network surge arrester

type 1 surge arrester

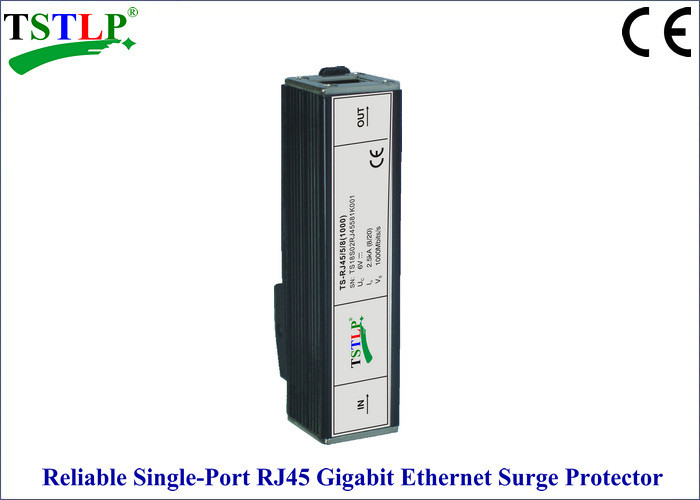

Single Port RJ45 Gigabit Ethernet Surge Protector 5v -1000MBit/s - Cat6 Lightning Arrester

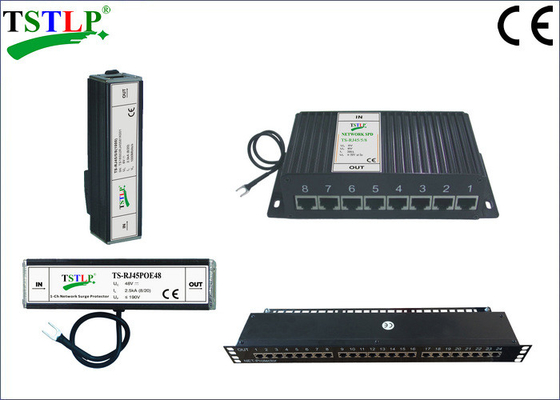

( 1 / 8 / 16 / 24 channels 100 MBits/s - Cat5 Ethernet Surge Arrester is also available to make as request).

TS-RJ45/5/8(1000) ethernet surge protector which complies with IEC 61643-21 is applied to Gigabit Ethernet ATM, Voip Networks and computer network equipment ... (e.g. Telecommunication, Server, Routers,Computers...) network equipment from interruption caused by surge current.

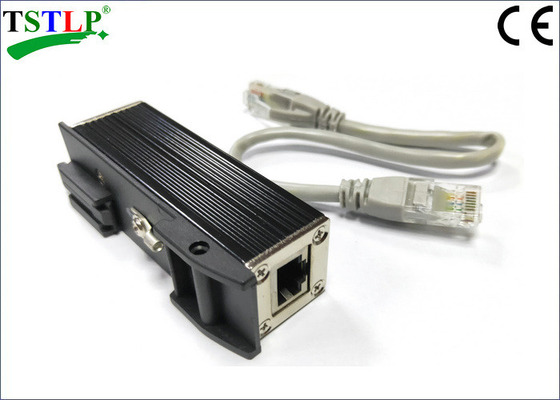

Single Port Ethernet Surge Protection Devices 5v - 1000MBit Vs Cat6 Surge Arrester 0

Technical Specification P1

Model No.		TS-RJ45/5/8(1000)
Nominal voltage	Un	5V-
Rated voltage (max. continuous voltage)	Uc	6V-
Nominal Current	IN	1A
Nominal discharge current (8/20)	In	2.5kA (line-line)
Nominal discharge current (8/20)	In	2.5kA (line-PG)
Max. discharge current (8/20)	Imax	10 kA(total)
Voltage protection level at In	Up	≤15V (line-line)
Voltage protection level at In	Up	≤150V (line-PG)
capacitance	C	≤30pF (line-line)
capacitance	C	≤25pF (line-PG)
Max. data transmission rates	Vs	1000Mbits/s
Operating temperature range		-40°C...+80°C

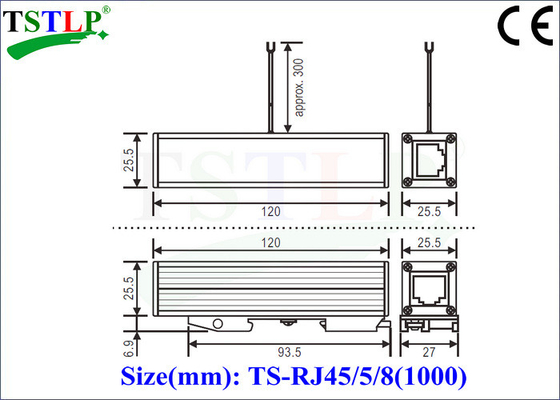

Technical Specification P2

Features

Single Port Ethernet Surge Protection Devices 5v - 1000MBit Vs Cat6 Surge Arrester 2

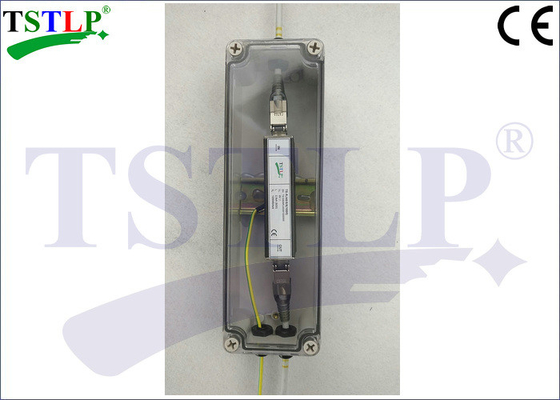

Installation Instruction of ethernet Surge Protection Devices

This cat6 lightning arrester is connected in series to the protected device.
Mount the ethernet surge protector on 35 mm DIN rail.
The out terminal s/b connected to the protected devices.
The ethernet surge protector's earthing terminal must be connected to nearby earthing BusBar or the metal earthing enclosure of protected device.
Regularly inspect the operating status, especially after lightning.Once the communication is off, electrician should check/replace the ethernet surge arrester.
